Hydraulic Press Brake Service Makes the Difference for Long Term Performance

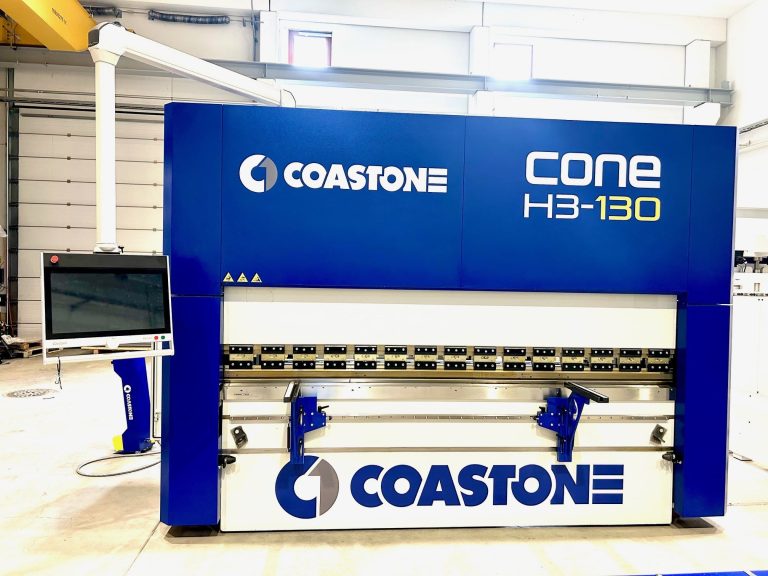

Hydraulic press brakes, such as the CoastOne H3-130, continue to be a preferred choice for many manufacturers and machine shops because they offer a proven balance of force, flexibility, and durability across a wide range of forming applications. In addition, hydraulic press brakes are well suited for varied job mixes, tolerating frequent changes in tooling, material type, and part geometry without compromising reliability.
Many of the leading hydraulic press brakes offer similar features, so it is often the quality of technical support that determines the long-term success of a machine. CoastOne’s U.S. distributor, Automec, includes installation and training in its pricing for this reason: ongoing access to knowledgeable service technicians and engineering support helps minimize downtime, resolve issues efficiently, and maintain consistent forming accuracy over time.
Hydraulic Press Brake Comparison
This comparison chart highlights key features commonly evaluated by buyers of Hydraulic Presses.
| Specification | CoastOne H3-130 | Accurpress (≈130T / 10 ft) | Baykal APHS (≈130T / 3100 mm) | Cincinnati XFORM (≈135T / 10 ft) | Durma AD-S (≈135T / 10 ft) | Ermaksan EVO III (≈130T / 3100 mm) | LVD PPEB (≈135T / 10 ft) |
|---|---|---|---|---|---|---|---|
|
Nominal capacity |
130 tons |
~130 tons |
~130 tons |
~135 tons |
~135 tons |
~130 tons |
~135 tons |
|
Bending length |
3100 mm (≈10.2 ft) |
~10 ft |
3100 mm |
~10 ft |
~10 ft |
3100 mm |
~10 ft |
|
Distance between columns |
2600 mm |
~2600 mm |
~2550 mm |
~2600 mm |
~2550–2600 mm |
~2600 mm |
~2600 mm |
|
Ram stroke |
250 mm (≈9.8″) |
~200–250 mm |
~200–250 mm |
~250–300 mm |
~250 mm |
~250 mm |
~250 mm |
|
Open height (daylight) |
450 mm (≈17.7″) |
~450–500 mm |
~450–500 mm |
~500–580 mm |
~520 mm |
~500–550 mm |
~450–500 mm |
|
Throat depth |
400 mm (≈15.7″) |
~400 mm |
~410 mm |
~450 mm |
~400–450 mm |
~410 mm |
~400–450 mm |
|
Approach speed |
210 mm/s (≈496 IPM) |
~150–200 mm/s |
~160 mm/s |
~500+ IPM |
~220–250 mm/s |
~180–200 mm/s |
~250–300 mm/s |
|
Bending speed |
10 mm/s (≈24 IPM) |
~10–15 mm/s |
~10 mm/s |
~40–55 IPM |
~15–25 mm/s |
~10–12 mm/s |
~20–30 IPM |
|
Return speed |
130 mm/s (≈307 IPM) |
~150–200 mm/s |
~130 mm/s |
~450–500 IPM |
~250–300 mm/s |
~180–190 mm/s |
~270–300 IPM |
|
Controlled axes |
Y1, Y2, X, R, Z1, Z2 |
Typically Y1/Y2 + X/R (options vary) |
Multi-axis options available |
Standard multi-axis backgauge |
Multi-axis backgauge available |
Typically 6-axis |
5–6 axis options |
|
Crowning system |
CNC crowning standard |
CNC crowning optional |
CNC crowning available |
Compensation system (model-dependent) |
Motorized CNC crowning |
Motorized CNC crowning |
Programmable CNC crowning |
|
Control |
Delem DA-66S, 24″ touchscreen, 2D graphics |
Delem / Cybelec options |
Delem DA-66 series |
Cincinnati proprietary CNC |
Delem / Durma CNC |
Delem CNC |
LVD Touch-B |
|
Main motor power |
11 kW |
~11–15 kW |
~11–15 kW |
~15–20 kW |
~15 kW |
~11–15 kW |
~15–20 kW |
CoastOne Features and Service Enhance Productivity
All of the hydraulic presses compared in the table above offer similar specifications and efficacy, but the CoastOne H3-130 stands out from the crowd and is chosen by many machine shops because of the following features.
1. CNC-Controlled Crowning
CoastOne equips the H3-130 with a CNC-controlled crowning system out of the box, which helps ensure consistent bend angles across long parts without manual shimming or aftermarket crowning kits.
- Many competitors either offer crowning as an option or use simpler/manual crowning.
- This improves first-part accuracy and reduces time spent on compensation tuning.
Why this matters for buyers: Better bend consistency and less setup time on long parts.
2. Quick-Clamp Punch Holders
The H3-130 includes quick-clamp tooling holders as standard equipment, allowing faster tooling changes and reduced downtime between jobs.
- Quick-clamp systems streamline tool changes compared with traditional bolt-on tooling systems that require more time and effort.
- This advantage is especially meaningful in high-mix, low-volume fabrication environments.
Why this matters for buyers: Shorter setup/changeover time = higher shop productivity.
3. Comprehensive Standard Axis Package
CoastOne’s standard axis package for the H3-130 includes Y1, Y2, X, R, Z1 and Z2 axes as part of the base configuration.
- Some competitors require pricey options to reach similar multi-axis control.
- Full axis control enhances positioning accuracy, backgauge flexibility, and the ability to handle complex bend sequences without add-ons.
Why this matters for buyers: Stronger built-in control reduces the need for expensive options and improves bending precision and flexibility.
4. Automec's Service and Support
CoastOne is represented by Automec, a distributor that focuses on technical support and service for press brakes. Automec maintains in-house engineering staff and employs field service technicians who handle machine installation, commissioning, and ongoing support across the U.S.
Why this matters for buyers: Technical expertise can reduce installation and setup time, allowing shops to bring new equipment into production more quickly and with fewer disruptions.
Shops Succeed Faster with the Right Press Brake Partner
When comparing hydraulic press brakes, performance specifications provide an important baseline, but they do not tell the whole story. Factors such as installation quality, operator training, and access to reliable technical support play a significant role in how effectively a machine performs over its service life. By these standards, the CoastOne H3-130 is a standout, due to its superior customer service from Automec.
Have experience with the CoastOne H3-130 or other hydraulic presses? We invite you to share your findings. Community feedback helps keep this information current and useful for other fabricators and shop owners.
Reach out to the Automec team for advice based on your specific hydraulic press needs.
